With the latest “Transit VPC” feature in the VMware Cloud on AWS (VMC) 1.12 release, you can now inject static routes in the VMware managed Transit Gateway (or VTGW) to forward SDDC egress traffic to a 3rd-party firewall appliance for security inspection. The firewall appliance is deployed in a Security/Transit VPC to provide transit routing and policy enforcement between SDDCs and workload VPCs, on-premises data center and the Internet.

Important Notes:

For this lab, I’m using a Palo Alto VM-Series Next-Generation Firewall Bundle 2 AMI – refer to here and here for a detailed deployment instructions
“Source/Destination Check” must be disabled on all ENIs attached to the firewall
For Internet access, SNAT must be configured on firewall appliance to maintain route symmetry
Similarly, inbound access from Internet to a server within VMC requires DNAT on firewall appliance

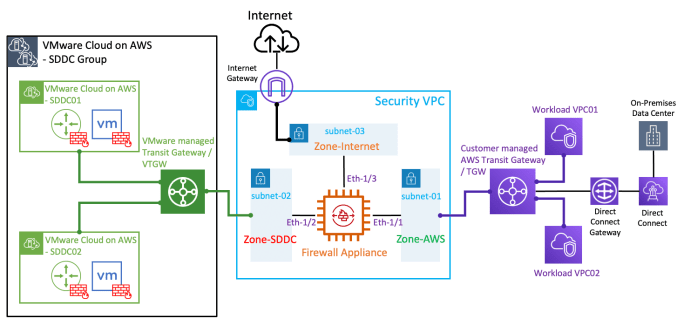

Lab Topology:

SDDC Group – Adding static (default) route

After deployed the SDDC and SDDC Group, link your AWS account at here

after a while, the VTGW will show up in the Resource Access Manager (RAM) within your account, accept the shared VTGW and then create a VPC attachment to connect your Security/Transit VPC to the VTGW.

Once done, add a static default route at SDDC Group to point to the VTGW-SecVPC attachment.

the default route should appear soon under your SDDC (Network & Security —> Transit Connect), also notice we are advertising the local SDDC segments including the management subnets
