Provision and integrate iSCSI storage with VMware Cloud on AWS using Amazon FSx for NetApp ONTAP

With the recently announced Amazon FSx for NetApp ONTAP, it is very exciting that for the first time we have a fully managed ONTAP file system in the cloud! What’s more interesting about this service is that we can now deliver high-performance block storage to the workloads running on VMware Cloud on AWS (VMC) through a first-party Amazon managed service!

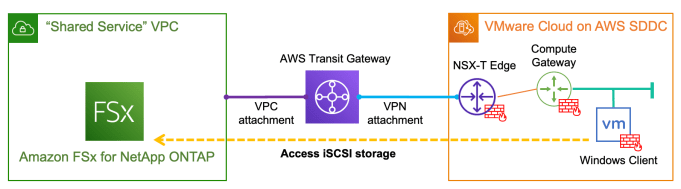

In this post I will walk you through a simple example for provisioning and integrating iSCSI-based block storage to a Windows workload running on VMC environment using Amazon FSx for NetAPP ONTAP. For this demo I’ve provisioned the FSx service in a shared service VPC, which is connected to the VMC SDDC cluster through an AWS Transit Gateway (TGW) via VPN attachment (as per below diagram).

Depending on your environment or requirements, you can also leverage a VMware Transit Connect (or VTGW) to provide high speed VPC connections between the shared service VPC and VMC, or simply provision the FSx service in the connected VPC so no TGW/VTGW is required.

AWS Configuration

To begin, I simply go to AWS console and select FSx in the service category and provision an Amazon FSx for NetApp ONTAP service in my preferred region. As a quick summary I have used the below settings:

  • SSD storage capacity 1024GB (min 1024GB, max 192TB)
  • sustained throughput capacity 512MB/s
  • Multi-AZ (ontap cluster) deployment
  • 1x storage virtual machine (svm01) to provide iSCSI service
  • 1x default volume (/vol01) of 200GB to host the iSCSI LUNs
  • storage efficiency (deduplication/compression etc): enabled
  • capacity pool tiering policy: enabled

After around 20min wait, the FSx ONTAP file system will be provisioned and ready for service. If you are using the above settings you should see a summary page similar like below. You can also retrieve the management endpoint IP address under the “Network & Security” tab.

Note the management addresses (for both the cluster and SVMs) are automatically allocated from within a range, and the same address block is going to provide the floating IP for NFS/SMB service (so customers don’t have to change file share mounting point address during an ONTAP cluster failover). Since this subnet is not natively deployed in a VPC, AWS will automatically inject the endpoint addresses (for management and NFS/SMB) into the specific VPC route tables based on your configurations.

However, you’ll need to specifically inject a static route for this (see below) on TGW/VTGW, especially if you are planning to provide NFS/SMB services to the VMC SDDCs over peering connections — see here for more details.

Conversely, this static route is not required if you are only using iSCSI services as the iSCSI endpoints are provisioned directly onto the native subnets hosting the FSx service and are not using the floating IP range — more on this later.

Next, we’ll verify the SVM (svm01) and Volume (vol01) status and make sure they are all online and healthy before we can provision iSCSI LUNs. Note: you’ll always see a separate root volume (automatically) created for each SVM.

Now click the “svm01” to dive into the details, and you’ll find the iSCSI endpoint IP addresses (again they are in the native VPC subnets not the mgmt floating IP range)


We are now ready to move onto the iSCSI LUN provisioning. This can be done by using either ONTAP API or ONTAP CLI, which is what I’m using here. First, we’ll SSH into the cluster management IP and verify the SVM and volume status.

Since this is a fully managed service, iSCSI service has been already activated on the SVM and the cluster is listening for iSCSI sessions on the 2x subnets across both AZs. You’ll also find the iSCSI target name here.

Now we’ll create a 20GB LUN for the Windows client running on VMC.

Next, create an igroup to include the Windows client iSCSI initiator. Notice the ALUA feature is enabled by default — this is pretty cool as we can test iSCSI MPIO as well 🙂

Finally, map the igroup to the LUN we have just created, make sure the LUN is now in “mapped” status and we are all done here!

Windows Client Setup

On the Windows client (running on the VMC), launch the iSCSI initiator configuration and put the iSCSI IP address of one of the FSx subnets in “Quick Connect”, Windows will automatically discover the available targets on the FSx side and log into the fabric.

Optionally, you could add a secondary storage I/O path if MPIO is installed/enabled on the Windows client. Like in my example here, I have add a second iSCSI session by using another iSCSI endpoint address in a different FSx subnet/AZ.

Now click “Auto Configure” under “Volumes and Devices” to discover and configure the iSCSI LUN device.

Next, go to “Computer Management” then “Disk Management” —> you should see a new 20GB disk has been automatically discovered (or manually refresh the hardware list if you can’t see the new disk yet). Initialise and format the disk.

The new 20GB disk is now ready to use. In the disk properties, you can verify the 2x iSCSI I/O paths as per below, and you can also change the MPIO policy based on your own requirements.

Integrating a 3rd-party firewall appliance with VMware Cloud on AWS by leveraging a Security/Transit VPC

With the latest “Transit VPC” feature in the VMware Cloud on AWS (VMC) 1.12 release, you can now inject static routes in the VMware managed Transit Gateway (or VTGW) to forward SDDC egress traffic to a 3rd-party firewall appliance for security inspection. The firewall appliance is deployed in a Security/Transit VPC to provide transit routing and policy enforcement between SDDCs and workload VPCs, on-premises data center and the Internet.

Important Notes:

  • For this lab, I’m using a Palo Alto VM-Series Next-Generation Firewall Bundle 2 AMI – refer to here and here for a detailed deployment instructions
  • “Source/Destination Check” must be disabled on all ENIs attached to the firewall
  • For Internet access, SNAT must be configured on firewall appliance to maintain route symmetry
  • Similarly, inbound access from Internet to a server within VMC requires DNAT on firewall appliance

Lab Topology:

SDDC Group – Adding static (default) route

After deployed the SDDC and SDDC Group, link your AWS account at here

after a while, the VTGW will show up in the Resource Access Manager (RAM) within your account, accept the shared VTGW and then create a VPC attachment to connect your Security/Transit VPC to the VTGW.

Once done, add a static default route at SDDC Group to point to the VTGW-SecVPC attachment.

the default route should appear soon under your SDDC (Network & Security —> Transit Connect), also notice we are advertising the local SDDC segments including the management subnets


Also we need to update the route table for each of the 3x firewall subnets

Route Table for the AWS native side subnet-01 (Trust Zone):

Route Table for the SDDC side subnet-02 (Untrust Zone):

Route Table for the public side subnet-03 (Internet Zone):

Route Table for the customer managed TGW:

Palo FW Configuration

Palo Alto firewall interface configuration

Virtual Router config:

Security Zones

NAT Config

  • Outbound SNAT to Internet
  • Inbound DNAT to Server01 in SDDC01

Testing FW rules

Testing Results
  • “untrust” —> “trust” deny
  • “trust” —> “untrust” allow
  • “untrust” -> “Internet” allow
  • “trust” -> “Internet” allow

Create a Tiny Core Linux VM Template for vSphere Lab environment

I’ve always wanted to find a lightweight VM template for running on nested vSphere lab environment, or sometimes for demonstrating live cloud migration such as vMotion to the VMware Cloud on AWS. Recently I have managed to achieve this by using the Tiny Core Linux distribution and it ticked all of my requirements:

  • ultra lightweight – the VM runs stable with only 1 vCPU, 256MB RAM and 64MB hard disk!
  • common linux tools installed – such as curl, wget, openssh etc
  • open-vm-tools installed
  • a lightweight http server serving a static site for running networking or load-balancing tests

In this post I will walk you through the process for creating a Tiny Core based Linux VM template including all of the above requirements. To begin, download the Tiny Core ISO from here. (For reference, I’m using the CorePlus-v11.1 release as I was getting some weird issues with OpenSSH on the latest v12.0 release)

Below are the settings I’ve used for my VM template:

  • VM hardware version 11 – compatible with ESXi 6.0 and later
  • Guest OS = Linux \ Other 3.x Linux (32-bit)
  • Memory = 256MB (this is the lowest I could go for getting a stable machine)
  • Hard Disk = 64MB – change drive type to IDE and set the virtual device node to IDE0:0
  • CDROM – change the virtual device node to IDE1:0
  • iSCSI controller – remove this as it’s not required

Also, you should use the below minimal settings for installing the Tiny Core OS. For detailed installation instructions, you can follow the step-by-step guide at here:

Once the OS has been installed and you are into the shell, create a below script to configure static IP settings for eth0 (and disable DHCP if required).

tc@box:~$ cat /opt/
# If you are booting Tiny Core from a very fast storage such as SSD / NVMe Drive and getting
# "ifconfig: SIOCSIFADDR: No such Device" or "route: SIOCADDRT: Network is unreachable"
# error during system boot, use this sleep statement, otherwise you can remove it -
sleep .2
# kill dhcp client for eth0
sleep 1
if [ -f /var/run/ ]; then
 kill `cat /var/run/`
 sleep 0.5
# configure interface eth0
ifconfig eth0 netmask broadcast up
route add default gw
echo nameserver >> /etc/resolv.conf
tc@box:~$sudo chmod 777 /opt/
tc@box:~$sudo /opt/

You may also want to reset the password for the default user “tc” (this can be used later for SSH access), and reset the root password as well:

tc@box:~$ passwd
Changing password for tc
tc@box:~$ sudo su
root@box:/home/tc# passwd
Changing password for root

Now install all the required packages and extensions, and your onboot package list should look like below:

tce-load -wi pcre.tcz curl.tcz wget.tcz open-vm-tools.tcz openssh.tcz busybox-httpd.tcz
tc@box:~$ cat /etc/sysconfig/tcedir/onboot.lst

Now configure and enable the SSH server — you can use user “tc” for a quick SSH test:

cd   /usr/local/etc/ssh
sudo cp ssh_config.orig ssh_config
sudo cp sshd_config.orig sshd_config
sudo /usr/local/etc/init.d/openssh start

Next, we’ll need to save all the settings and make them persistent across reboots, especially we’ll need to add the open-vm-tools and openssh onto the startup script ( — otherwise none of these services would be started after a reboot.

sudo su
echo '/opt/' >> /opt/.filetool.lst
echo '/usr/local/etc/ssh' >> /opt/.filetool.lst
echo '/etc/shadow' >> /opt/.filetool.lst
echo '/opt/' >> /opt/
echo '/usr/local/etc/init.d/open-vm-tools start &> /dev/null'  >> /opt/
echo '/usr/local/etc/init.d/openssh start &> /dev/null' >> /opt/

and most importantly, use the below command to backup all the config!

tc@box:~$ -b
Backing up files to /mnt/sda1/tce/mydata.tgz

The last one is for my own specific requirement — you can use the below script to setup a lightweight http server so it can be used for networking or load-balancing related tests.

tc@box:~$ sudo vi /opt/
sudo /usr/local/httpd/bin/busybox httpd -p 80 -h /usr/local/httpd/bin/
sleep .5
sudo touch /usr/local/httpd/bin/index.html
sudo chmod 666 /usr/local/httpd/bin/index.html
echo "this page is served by" >> /usr/local/httpd/bin/index.html
ifconfig eth0 | grep -i mask | awk '{print $2}'| cut -f2 -d:  >> /usr/local/httpd/bin/index.html
tc@box:~$ sudo chmod 777 /opt/
tc@box:~$ sudo echo '/opt/' >> /opt/
tc@box:~$ -b

Now you can go ahead and safely reboot the VM, and once it comes back online you should be able to SSH into it. Also the the open-vm-tools service should be automatically started and you can see the correct IP address and VM tool version reported in vCenter.

In addition, you should be able to see a static page like below by browsing to the VM address — the script ( should report back the VM’s IP address which could be handy for running a LB related testings.

NSX-T Automation with Terraform

Recently I have tried out the Terraform NSX-T Provider and it worked like a charm. In this post, I will demonstrate a simple example on how to leverage Terraform to provision a basic NSX tenant network environment, which includes the following:

  1. create a Tier-1 router
  2. create (linked) routed ports on the new T1 router and the existing upstream T0 router
  3. link the T1 router to the upstream T0 router
  4. create three logical switches with three logical ports
  5. create three downlink LIFs (with subnets/gateway defined) on the T1 router, and link each of them to the logical switch ports accordingly

Once the tenant environment is provisioned by Terraform, the 3x tenant subnets will be automatically published to the T0 router and propagated to the rest of the network (if BGP is enabled), and we should be able to reach the individual LIF addresses. Below is a sample topology deployed in my lab — (here I’m using pre-provisioned static routes between the T0 and upstream network for simplicity reasons).

Software Versions Used & Verified

  • Terraform – v0.12.25
  • NSX-T Provider – v3.0.1 (auto downloaded by Terraform)
  • NSX-T Data Center -v3.0.2 (build 0.0.16887200)

Sample Terraform Script

You can find the sample Terraform script at my Git repo here — remember to update the variables based on your own environment.

nsx_manager     = ""
nsx_username    = "admin"
nsx_password    = "xxxxxx"
nsxt_t1_rt_name = "dev-demo-t1-rtr"
ls1_name        = "ls-dev-demo-web"
ls2_name        = "ls-dev-demo-app"
ls3_name        = "ls-dev-demo-db"
ls1_gw          = ""
ls2_gw          = ""
ls3_gw          = ""

Run the Terraform script and this should take less than a minute to complete.

We can review and reverify that the required NSX components were built successfully via the NSX manager UI — Note: you’ll need to switch to the “Manager mode” to be able to see the newly create elements (T1 router, logical switches etc), as Terraform was interacting with the NSX management plane (via MP-API) directly.

In addition, we can also check and confirm the3x tenant subnets are published via T1 to T0 by SSH into the active edge node. Make sure you connect to the correct VRF table for the T0 service router (SR) in order to see the full route table — here we can see the 3x /24 subnets are indeed advertised from T1 to T0 as directly connected (t1c) routes.

As expected I can reach to each of the three LIFs on the T1 router from the lab terminal VM.

Enabling embedded Harbor Image Registry in vSphere 7 with Kubernetes

This will be a quick blog to demonstrate how to enable the (embedded) Harbor Image Registry in vSphere 7 with Kubernetes. Harbor was originally developed by VMware as a enterprise-grade private container registry. It was then donated to the CNCF in 2018 and recently became a CNCF graduated project.

For this demo, we’ll activate the embedded Harbor register within the vSphere 7 Kubernetes environment, and integrate it with the Supervisor Cluster for container management and deployment.


Enabling the embedded Harbor Registry in vSphere 7 with Kubernetes

To begin, go to your vSphere 7 “Workload Cluster —> Namespaces —> Image Registry”, and then click “Enable Harbor”.

Make sure to select the vSAN storage policy to provide persistent storage as required for the Harbor installation.

The process will take a few minutes, and you should see 7x vSphere Pods after Harbor is installed and enabled. Take a note of the Harbor URL — this is an external address of the K8s load balancer that is created by NSX-T.

Push Container Images to Harbor Registry

First, let’s log into the Harbor UI and take a quick look. Since this is embedded within vSphere, it supports the SSO login 🙂

Harbor will automatically create a project for every vSphere namespace we have created. In my case, there are two projects “dev01” and “guestbook” created, which are mapped to the two namespaces in my vSphere workload cluster.

Click the “dev01” project, and then “repository” — as expected it is currently empty, and we’ll be pushing container images to this repository for a quick test. However, before we can do that we’ll need to download and import the certificate to our client machine for certificate-based authentication. Click the “Registry Certificate” to download the ca.crt file.

Next, on the local client create a new directory under /etc/docker/cert.d/ using the same name as the registry FQDN (URL).

[root@pacific-ops01 ~]# cd /etc/docker/certs.d/
[root@pacific-ops01 certs.d]# mkdir
[root@pacific-ops01 certs.d]# cd
[root@pacific-ops01]# vim ca.crt

Now, let’s get a test (nginx) image, tag it, and try to push it to the dev01 repository.

[root@pacific-ops01 ~]# docker login --username administrator@vsphere.local
Login Succeeded

[root@pacific-ops01 ~]# docker pull nginx
Using default tag: latest
Trying to pull repository ...
latest: Pulling from
bf5952930446: Pull complete
cb9a6de05e5a: Pull complete
9513ea0afb93: Pull complete
b49ea07d2e93: Pull complete
a5e4a503d449: Pull complete
Digest: sha256:b0ad43f7ee5edbc0effbc14645ae7055e21bc1973aee5150745632a24a752661
Status: Downloaded newer image for
[root@pacific-ops01 ~]#
[root@pacific-ops01 ~]# docker images
REPOSITORY          TAG                 IMAGE ID            CREATED             SIZE     latest              4bb46517cac3        3 days ago          133 MB
[root@pacific-ops01 ~]#
[root@pacific-ops01 ~]# docker tag
[root@pacific-ops01 ~]#
[root@pacific-ops01 ~]# docker push
The push refers to a repository []
550333325e31: Pushed
22ea89b1a816: Pushed
a4d893caa5c9: Pushed
0338db614b95: Pushed
d0f104dc0a1f: Pushed
latest: digest: sha256:179412c42fe3336e7cdc253ad4a2e03d32f50e3037a860cf5edbeb1aaddb915c size: 1362
[root@pacific-ops01 ~]#

It works, perfect! Now refresh the repository and we can see the new nginx image we just pushed through.

Deploy Kubernetes Pods to Supervisor Cluster from the Harbor Registry

Let’s run a quick test to deploy a Pod using the nginx image from our Harbor Registry. First, log into the Supervisor Cluster and switch to the “dev01” namespace/context.

[root@pacific-ops01 ~]# kubectl vsphere login --server= --vsphere-username administrator@vsphere.local --insecure-skip-tls-verify
Logged in successfully.
[root@pacific-ops01 ~]# kubectl config use-context dev01
Switched to context "dev01".

Make a nginx Pod config using the image path from our Harbor repository.

apiVersion: v1
kind: Pod
    run: nginx-demo
  name: nginx-demo
  namespace: dev01
  - image:
    name: nginx-demo
  restartPolicy: Always

Deploy the Pod.

[root@pacific-ops01 ~]# kubectl apply -f nginx-demo.yaml
pod/nginx-demo created

Monitor the events and soon we can see the Pod is deployed successfully from the image fetched from the Harbor repository.

[root@pacific-ops01 ~]# kubectl get  events -n dev01
LAST SEEN   TYPE     REASON                         OBJECT                                                    MESSAGE
48s         Normal   Status                         image/nginx-4f70b77c704ff28acdf14ce0405bc1811e8ee077-v0   pacific-esxi-3: Image status changed to Resolving
40s         Normal   Resolve                        image/nginx-4f70b77c704ff28acdf14ce0405bc1811e8ee077-v0   pacific-esxi-3: Image resolved to ChainID sha256:80b21afd8140706d5fe3b7106ae6147e192e6490b402bf2dd2df5df6dac13db8
40s         Normal   Bind                           image/nginx-4f70b77c704ff28acdf14ce0405bc1811e8ee077-v0   Imagedisk 80b21afd8140706d5fe3b7106ae6147e192e6490b402bf2dd2df5df6dac13db8-v0 successfully bound
32s         Normal   Status                         image/nginx-4f70b77c704ff28acdf14ce0405bc1811e8ee077-v0   Image status changed to Fetching
14s         Normal   Status                         image/nginx-4f70b77c704ff28acdf14ce0405bc1811e8ee077-v0   Image status changed to Ready
7s          Normal   SuccessfulRealizeNSXResource   pod/nginx-demo                                            Successfully realized NSX resource for Pod
<unknown>   Normal   Scheduled                      pod/nginx-demo                                            Successfully assigned dev01/nginx-demo to pacific-esxi-1
50s         Normal   Image                          pod/nginx-demo                                            Image nginx-4f70b77c704ff28acdf14ce0405bc1811e8ee077-v0 bound successfully
39s         Normal   Pulling                        pod/nginx-demo                                            Waiting for Image dev01/nginx-4f70b77c704ff28acdf14ce0405bc1811e8ee077-v0
14s         Normal   Pulled                         pod/nginx-demo                                            Image dev01/nginx-4f70b77c704ff28acdf14ce0405bc1811e8ee077-v0 is ready
7s          Normal   SuccessfulMountVolume          pod/nginx-demo                                            Successfully mounted volume default-token-bqxc2
7s          Normal   Created                        pod/nginx-demo                                            Created container nginx-demo
7s          Normal   Started                        pod/nginx-demo                                            Started container nginx-demo

[root@pacific-ops01 ~]# kubectl get pods -n dev01
nginx-demo   1/1     Running   0          60s

Use kubectl describe pod to confirm the nginx Pod is indeed running on the image pulled from the Harbor registry.
